High Efficiency DJI Mavic 3 Drone DJI Tethered Drone Integrated Design

DJI Mavic 3 Tethered

I, Tethered illumination unmanned aerial vehicle

1. Integrated design of drone+lighting module and control platform; Deployment time ≤ 3 minutes;

2. The power cable has an automatic cable retraction function;

3. High strength tensile and high temperature resistant wire, aviation high-strength fiber layer, power cable length ≥ 50M;

Outer diameter: 2.3mm ± 0.2mm; Rated withstand voltage of 400-800V, long-term current carrying capacity of 2.5A; Working temperature range: -55 ℃ -150 ℃; Tensile strength ≥ 60KG

4. Equipped with adjustable telescopic rods (65mm-170mm);

5. Power supply methods: generator, built-in energy storage power supply, mains power supply;

Input power supply: 220VAC, 50Hz; Equipped with output protection, short circuit protection, and overvoltage protection;

6. One stop pull rod box design, capable of individual combat; Built in energy storage battery, capable of providing emergency lighting for flights lasting over 2 hours;

7. Equipment reference size: 566mm, 467mm, 359mm

8. Weight: ≤ 28KG (including built-in energy storage power supply)

II, Parameters of aerial lighting vehicles

1. Number of axes: ≥ 4;

2. Symmetrical motor wheelbase: ≤ 380mm ;

3. Folding size: ≤ 240mm*110mm*120mm

4. Equipped with a 5.5-inch remote control touch screen, with a remote control flight distance of ≥ 6KM;

4. Weight (including lighting and functional modules) ≤ 1.25kg;

5. Positioning: Supports Beidou/GPS dual-mode positioning;

6. Hover accuracy: horizontal ± 0.5m, vertical ± 0.5m;

7. Visual positioning omnidirectional binocular obstacle avoidance

8. Flight speed: ascent speed of 8m/s, descent speed of 6m/s, maximum flight speed of 21m/s

9. Maximum altitude for takeoff: 6000m

10. Power supply method: tethered cable power supply

11. Continuous and uninterrupted flight time: ≥ 12 hours;

12. Protection function: In case of abnormal power interruption, the drone can land normally for emergency purposes;

13. Blade material: Flexible blade design to prevent accidental injury to personnel;

III, Lighting system parameters

1. Lighting group light source type: LED or COB light source;

1. Power: Standard 400W, optional 600W;

2. Luminous flux: 400W ≥ 60000 Lm; 600W ≥ 80000 Lm;

3. Height: ≥ 50m;

4. Lighting range: ≥ 5000m²;

5. Power supply voltage: 350-380V

6. Weight of a single 200w lamp assembly: ≤ 98g (including quick release bracket and wire);

7. Size: Length 125mm, Width 40mm, Height 20mm

8. Wire outlet length: 185mm

9. Cable Material: Teflon Silver Plated High Temperature Resistant Wire Color Temperature: 6157K

10. Control method: Physical control Light emission angle: 120 °

11. Installation method: Quick release and plug-in design

12. Intelligent protection function: capable of temperature control protection. When the temperature of the lamp group rises to 90 ° C, the power gradually decreases and the brightness weakens. When the temperature decreases, the power gradually increases and the brightness increases

IV: Ground power supply system parameter

1. Size: ≤ 566mm *467mm *359mm;

2. Weight: ≤ 28KG

(including energy storage power system, tethered power supply system, aircraft kit, lighting system)

3. Pull rod box type individual combat design;

4. The mobile power box can use mains power, generators, and energy storage power sources, and has power-off protection function. When the external power supply is abnormally interrupted, the aircraft can fly and land normally;

5. The power box is equipped with an energy storage power supply, and the lighting time is ≥ 2 hours;

6. The built-in energy storage takes about 4.5 hours to fully charge

7. Output power: 1500W

8. Display: output voltage, output current, power, electrical energy;

9. Built in energy storage power supply percentage display;

10. Low battery alarm function;

11. Built in UPS power supply: 1800WH (1.8 kWh);

12. Temperature display inside the chassis;

13. Wire collection methods: jog wire collection, automatic wire collection;

14. The wire speed can be adjusted in two levels: fast and slow;

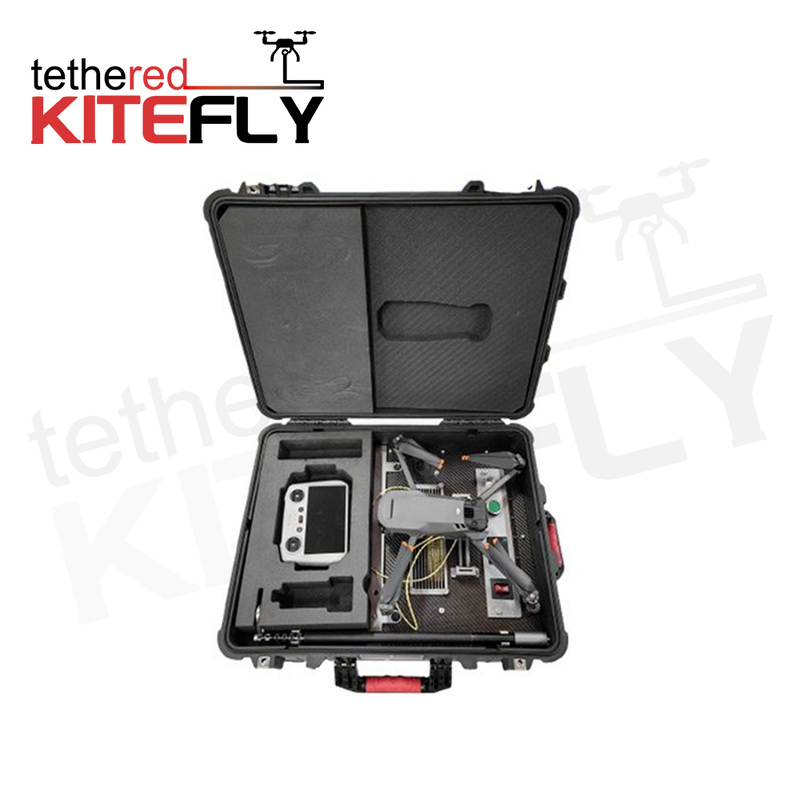

15. Integrated box storage for drone kit system, lighting unit, onboard power supply, telescopic pole, UPS power supply, power cord, etc;

V: Onboard power module

1. Integrated design of backup battery and onboard power supply

2. Battery indicator light, power on/off button

3. Lighting interface

4. Weight: 319g (spare battery+onboard module)

5. Power: 600W

6. Output voltage: 17V ± 0.5V

7. Interface method: Original battery interface
