| Brand Name: | Kitefly |
| MOQ: | 1~5unit |
| Price: | negotiable |
| Delivery Time: | 1~4week |
| Payment Terms: | T/T,L/C, Western Union |

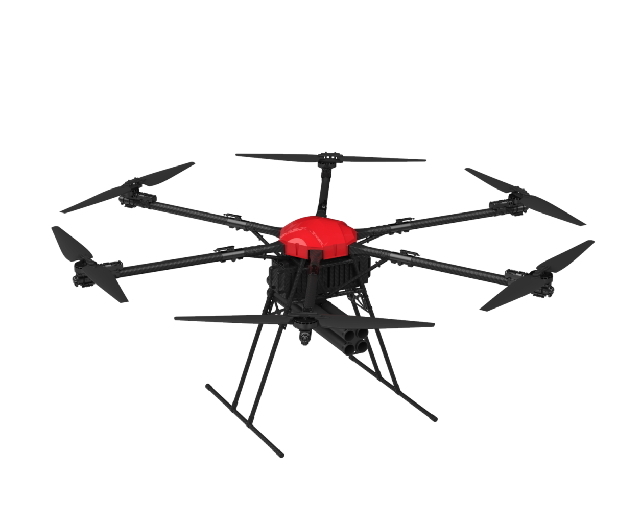

Tethered Aircraft W60
Model: AF-W60
Product Material: Carbon Fiber+Aviation Aluminum Alloy
Number of rotors: 6 rotors
Wheelbase: ≤ 2635 (± 20)
Unfolding size (mm): 2770 * 2430 * 1050 (± 20)
Folding size (mm): 1290 * 1125 * 1050 (± 20)
Empty weight: ≤ 34.5KG (excluding battery weight)
Maximum load: ≤ 60KG
Maximum takeoff weight: ≤ 124.5KG
Maximum flight speed: ≤ 15m/s
Maximum ascent speed: ≤ 5m/s
Maximum descent speed: ≤ 4m/s
Maximum takeoff altitude of 4000m
Flight endurance: ≥ 65min (unloaded) ≥ 28min (50kg load)
60kg battery life: ≥ 20min
GPS+RTK positioning system (supports single Beidou mode)
Efficient FOC power system
Propeller size 48 inch carbon fiber folding propeller
Power battery 18S 32000mAh * 4
Charger intelligent super fast charging
Remote control 7-inch industrial touch screen+visual screen
Remote control distance 5-20KM (ground to air, line of sight)
Protection level: IP45
Safe wind speed ≤ level 7
Working temperature -20 ℃ to 50 ℃
