Brand Name: | Kitefly |
MOQ: | 1~5unit |
Price: | negotiable |
Delivery Time: | 1~4week |
Payment Terms: | T/T,L/C, Western Union |

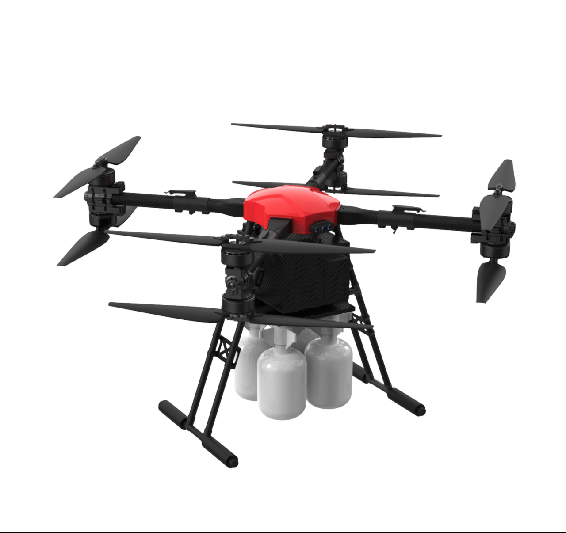

Tethered Aircraft W50
Model: AF-W50
Product Material: Carbon Fiber+Aviation Aluminum Alloy
Number of rotors: Four axes and eight propellers
Wheelbase: ≤ 1650 (± 20)
Unfolding size (mm): 1250 * 1250 * 890 (± 20) MM
Folding size (mm): 930 * 930 * 890 (± 20) MM
Empty weight: ≤ 27KG (excluding battery weight)
Maximum load: ≤ 50KG
Maximum takeoff weight: ≤ 105KG
Maximum flight speed: ≤ 15m/s
Maximum ascent speed: ≤ 5m/s
Maximum descent speed: ≤ 4m/s
Maximum takeoff altitude of: 4000m
No load endurance: ≥ 42min
50kg battery life: ≥ 13min
Positioning System: GPS + RTK positioning (supports single-Beidou mode)
Power System: High-efficiency FOC power system
Propeller Size: 41-inch folding propellers
Power Battery: 16S 28000mAh × 3
Charger: Intelligent super-fast charger
Remote Controller: 7-inch industrial touchscreen + optical viewfinder screen
Control Range: 5-20KM (ground-to-air, line-of-sight)
Protection Rating: IP45
Safe Wind Speed: ≤7 Beaufort scale
Operating Temperature: -20°C to 50°C
