| Brand Name: | Kitefly |
| Model Number: | WP1 |
| MOQ: | 1 |
| Payment Terms: | T/T |
Technical Specifications

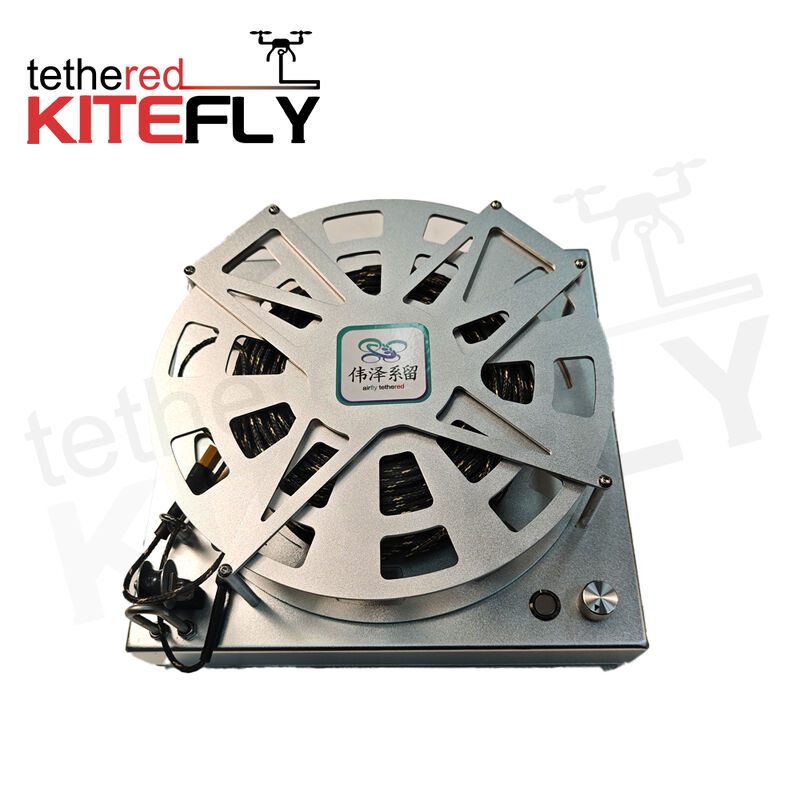

The system adopts a horizontal cable winding structure with electric cable retrieval and rotary stepless torque adjustment. The housing is made of aluminum alloy, and the overall structure is divided into two layers: the upper cable winch layer and the lower main structural body. The lower section integrates the brushless motor and battery, with multiple cooling vents at the bottom for heat dissipation.
|
Item |
Specification |
|
Weight |
≤ 4,083 ± 50 g |
|
Overall Dimensions |
≤ 290 × 300 × 120 mm |
|
Cable Winding Type |
Horizontal winding |
|
Built-in Battery |
≥ 2,600 mAh |
|
Charging Input |
220V AC to 24V DC |
|
Retrieval Type |
Electric retrieval |
|
Torque Control |
Rotary stepless adjustment |
|
Retrieval Speed |
0–3 m/s |
|
Housing Material |
Aluminum alloy |
|
Main Components |
Indicator light, control knob, cable retrieval winch |
|
Structure |
Two-layer design |
|
Upper Layer |
Cable winch layer |
|
Winch Diameter |
≥ 270 mm |
|
Winch Height |
≥ 50 mm |
|
Lower Layer |
Main body with brushless motor and battery |
|
Lower Layer Size |
≤ 290 × 300 × 50 mm |
|
Winch-to-Base Connection Columns |
≥ 6 pcs |
|
Bottom Cooling Vents |
≥ 26 pcs |
