| Brand Name: | Kitefly |
| MOQ: | 1~5unit |
| Price: | negotiable |
| Delivery Time: | 1~4week |
| Payment Terms: | T/T,L/C, Western Union |

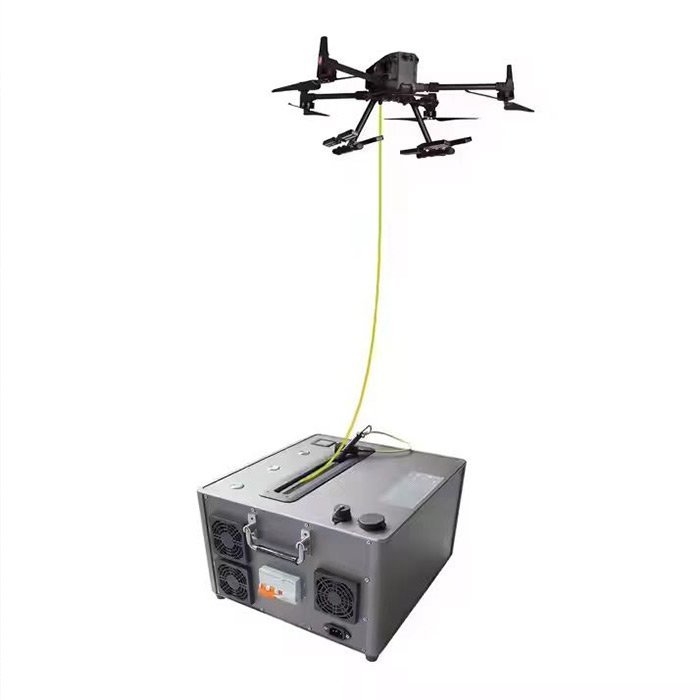

DJI M350 Tethered
Tether Box
Dimensions: 422mm × 350mm × 225mm
Ambient Temperature: -20°C to +60°C
High-altitude Capability: Usable at altitudes up to 5000m
Equipment Weight: 13.2kg ± 0.3kg (including 110m tether cable), with a single-person backpack function. An airline-approved case with a telescopic handle is used for transportation.
Cable Length: ≥100m
Cable Diameter: ≤4mm
Cable Tensile Strength: ≥150kg, Cable Weight: ≤1.8kg per 100m, 10A cable
Output Power: Adjustable from 0 to 4000W on the ground
Output Voltage: Adjustable from 380Vdc to 500Vdc. The ground power supply voltage must have real-time compensation to maintain stable voltage at the airborne end.
Reeling System: Real-time automatic reeling with a manual winding handle
Display Function: Capable of accurately recording output voltage, power, and temperature data
Fiber Optics: Optional upgrade available
Airborne Module
Dimensions: 1455mm × 91mm × 93mm
Weight: 500g ± 10g
Power: 2500W
Output: 50V, maximum 60A, with automatic protection at 62A. Operating temperature can reach up to 80°C.
The airborne module can be optionally equipped with a lighting system, providing 40,000 to 120,000 lumens, covering an area of 2,000 to 13,000 square meters.
